Which tools do I need for karting setup?

Basic kit: 8/10/13/17 mm socket wrenches (long + short), 4/5/6 mm Allen keys, torque wrench (5–25 Nm), tyre pressure gauge (0–2 bar, digital), pyrometer (tyre temperature), chain gauge, spanner for axle nut (usually 24 or 30 mm). Extras: dial gauge (toe), camber gauge, weight scales, ride-height gauge.

How do I measure toe on a kart?

Kart on the ground, driver in the seat (or ballast weight), steering wheel straight ahead. Measure between the front tyre inner edges front (X) and rear (Y). Y − X = toe-out; X − Y = toe-in. Standard: 1–2 mm toe-out for dry, 0 mm to slight toe-in for wet. Adjust via tie-rod length.

What is the correct chassis setup for cold conditions?

Cold conditions = less grip = chassis needs to open. Concrete: soft (H) axle, hip inserts loose or removed, seat mounted higher, wider front track. Steering wheel a touch higher. Tyre pressures slightly higher (1.0–1.1 bar cold instead of 0.8). Goal: bring the tyres to operating temperature faster.

How do I set caster and camber?

Caster (front stub axle steering angle): more positive caster = more self-centering and more grip in slow corners. Adjust via caster shims at the front stub axle mount. Camber (front wheel lean angle): 0° to -1° for dry, 0° to +1° for wet. Adjust via camber shims at the front stub axle mount. Always adjust in 0.5° steps and test.

How often should the karting kingpin be greased?

Every 2–3 race weekends the front stub axles (kingpins) should be removed, cleaned and greased. Use motorcycle wheel bearing grease (waterproof). Sticky steering = kingpins seized. In wet weather grease more often — water washes out the grease.

Workshop & Setup

Workshop tools & setup equipment

Without the right workshop equipment every kart setup becomes guesswork. In this category you will find tools, measuring and adjustment devices specifically designed for karting, as well as kart trolleys for transport between box and track.

What you will find here

Measuring and adjustment tools — for toe, camber, wheel load, tyre pressure, carburettor setup and cylinder head measurement.
Kart trolleys — from simple transport frames to setup trolleys with integrated wheel load measurement.

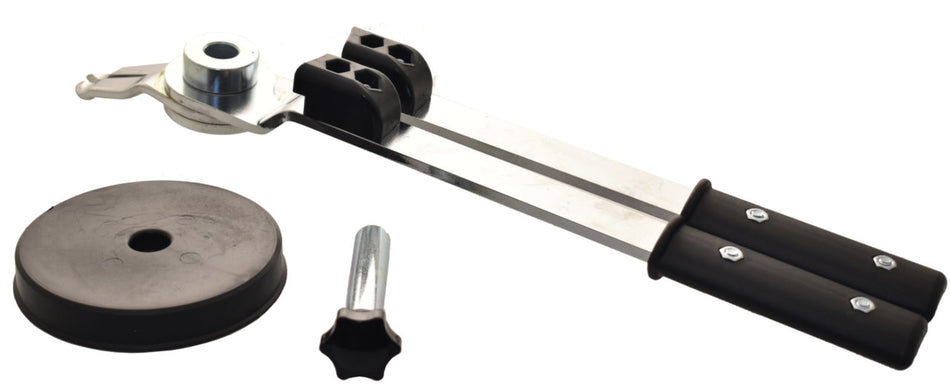

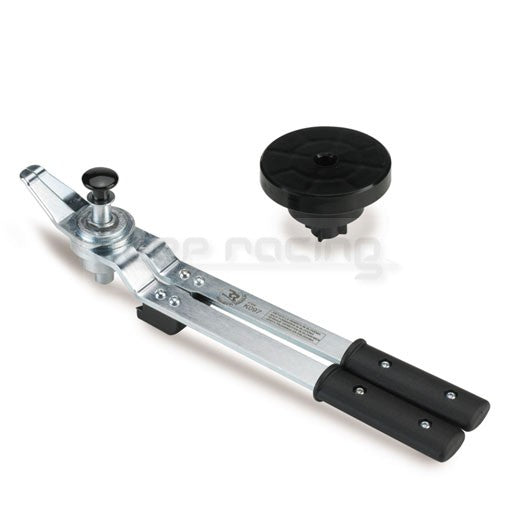

Tyre tools — balancing machines, tyre levers, valve tools.

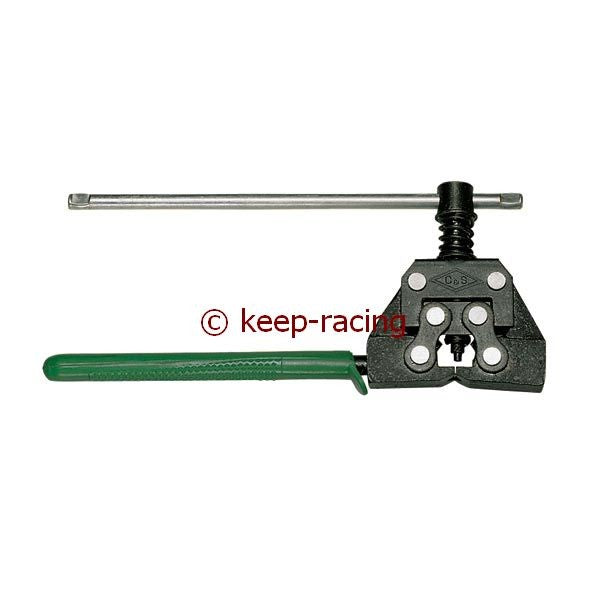

Chain and drivetrain tools — chain breakers 219 and 428, chain rivet pliers, pullers.
Engine tools — piston ring pliers, crankshaft pullers, cylinder honing, engine-specific tools for X30/Waterswift/Reedster.
Brake tools — bleeding pumps, brake piston retainers.
